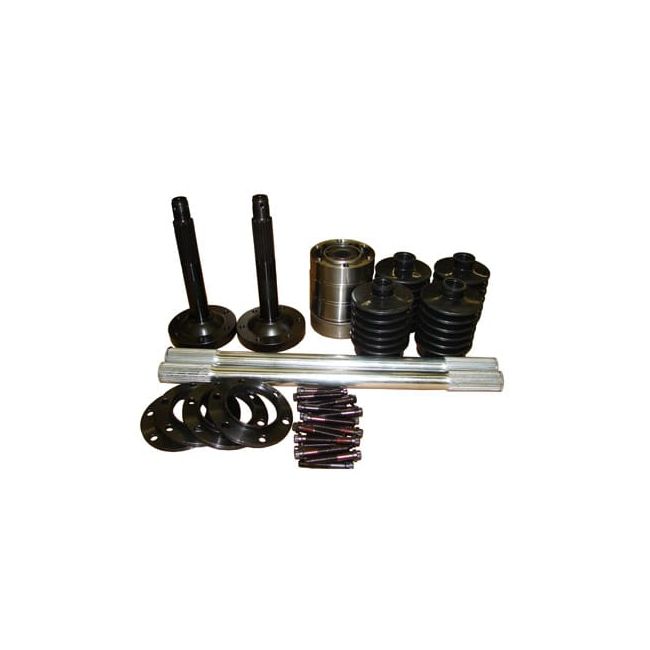

Type 2 Stub Axle Kits for Type 2 Transmission
Come with the following;
2 Forged Chromoly conversion stub axles T-1 – T-2 CV s
2 Chromoly Drive Axles
4 Bus CV Joints
4 Off-Road Boots with Boot flanges
24 Hardened CV Bolts.
Please tell us what length drive axles you need during check out.
Bus 33 spline drive axles come in lengths of;
15 5/8″, 16 1/4″, 16 3/4″, 17 1/4″, 18 3/4″, 19 1/4″, 20 1/4″, 21 3/8″, 22″.
To measure your your drive axles, you need to measure the distance between the inside of the transmission Cv flange and the inside of the stub axle cv flange when both of them are at the same height. (Horizontal to each other) Then subtract 1/4″. It is best to to disconnect the trailing arm from the spring plate so you can raise the arm up.
If you have questions please call us.
We also have these kits for 930 CV s for Type 2 Trans 002 – 091
and Type 1 Transmissions.
