Stub Axle Kit 930 CV s to Type 2 091 Transmission | PKG930-091


This item is oversized, a freight charge of $25.00 will be added to your order.

Item In Stock

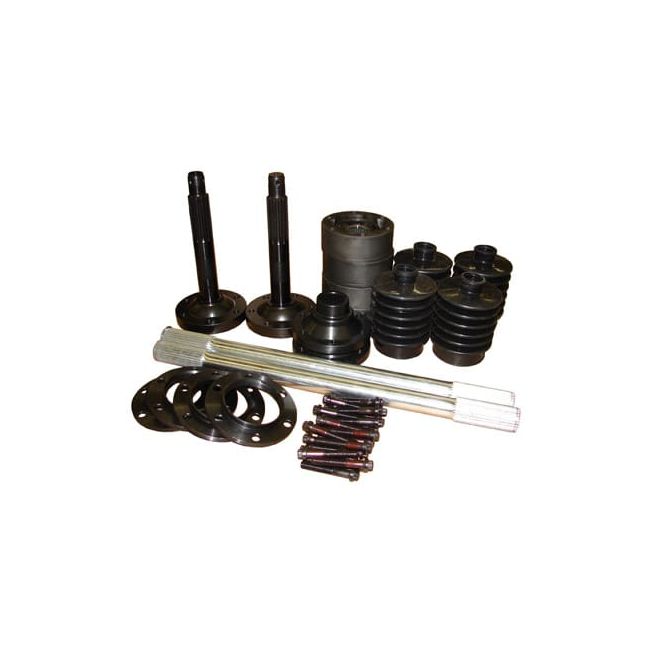

930 Stub Axle Kits for Type 2 091 Transmission
Come with the following;
2 Forged Chromoly conversion stub axles T-1 – 930 cv
2 Forged Chromoly Trans Drive flanges for T-2 091 Trans
2 Chromoly Drive Axles
4 930 CV Joints
4 Off-Road Boots with Boot flanges
24 Hardened CV Bolts.

Please tell us what length drive axles you need during check out.
930 28 spline drive axles come in lengths of;
15 5/8 inch, 16 1/4 inch, 16 3/4 inch, 17 1/4 inch, 18 3/4 inch, 19 1/4 inch, 20 1/4 inch, 21 3/8 inch
22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch.

To measure your your drive axles, you need to measure the distance between the inside of the transmission Cv flange and the inside of the stub axle cv flange when both of them are at the same height. (Horizontal to each other) Then subtract 1/4 inch. It is best to to disconnect the trailing arm from the spring plate so you can raise the arm up.
If you have questions please call us.

We also have these kits for 930 CV for Type 1 Trans and 002 Bus
and Type 2 CV s for Type 1 Transmissions.
